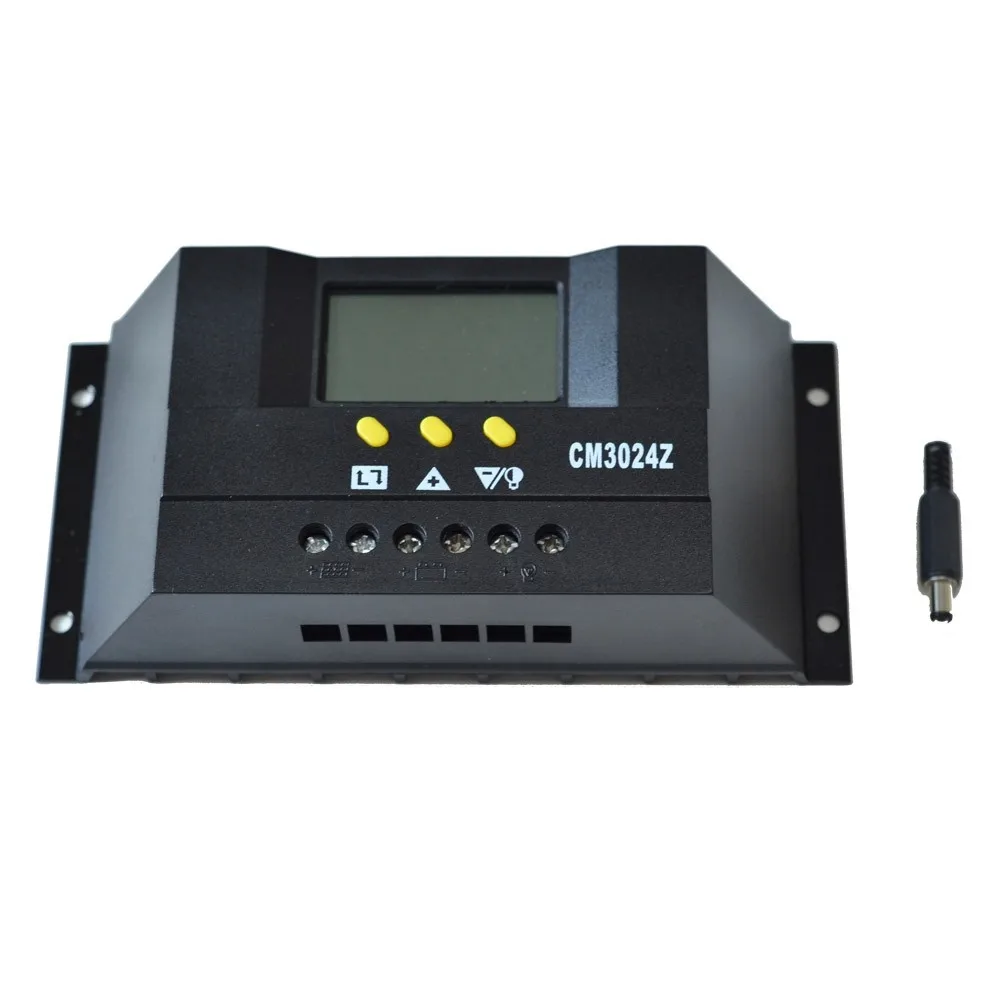

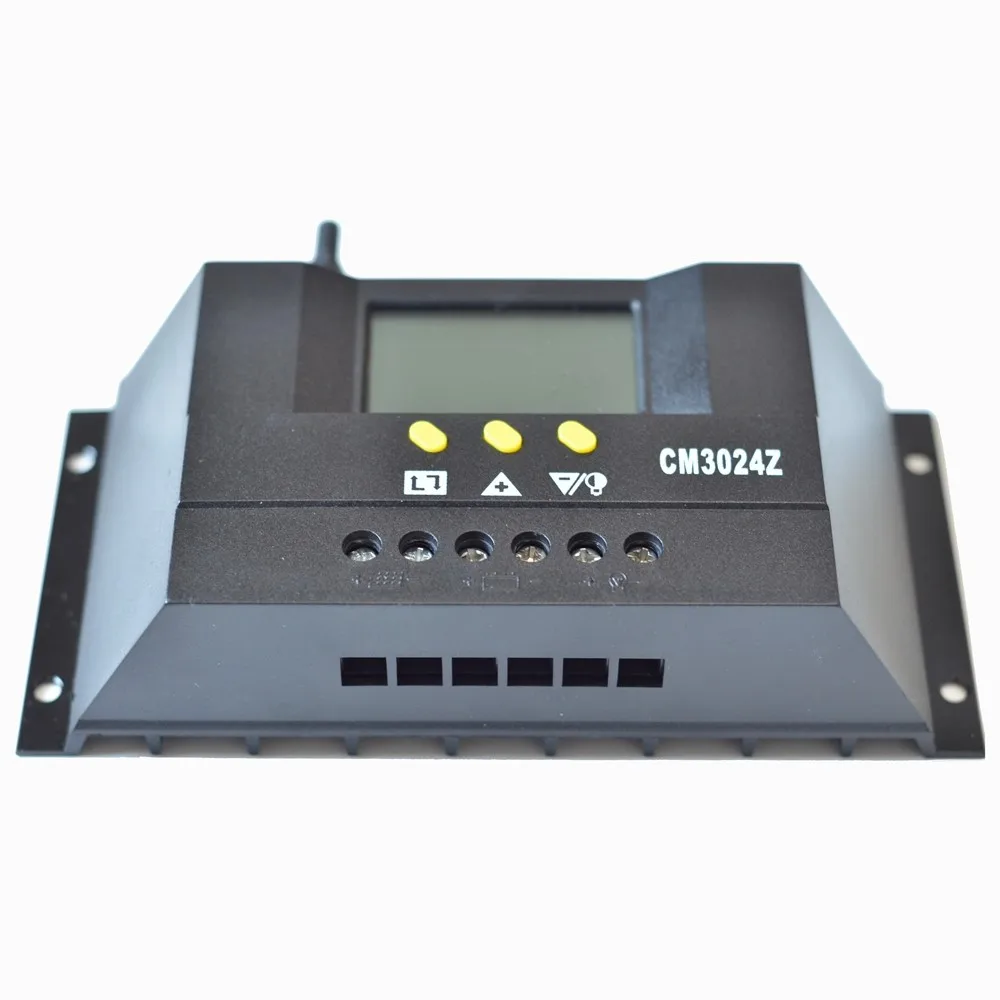

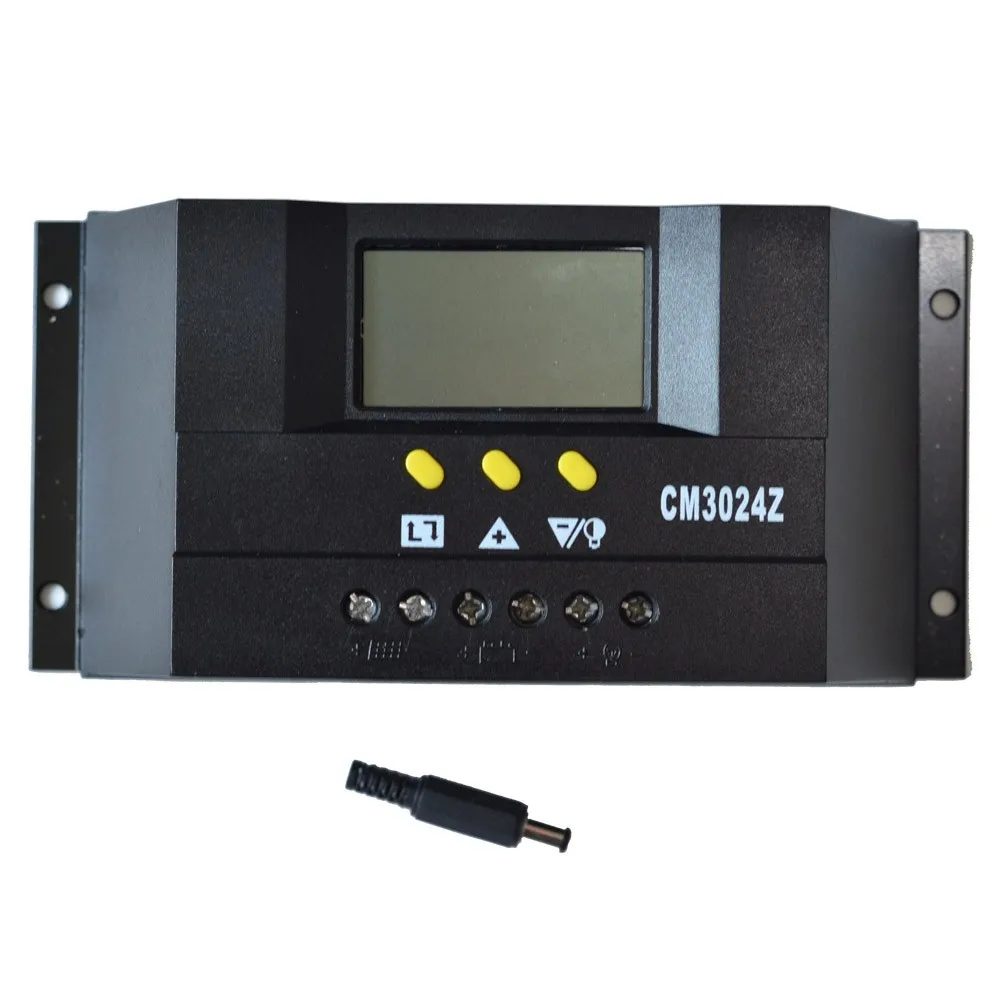

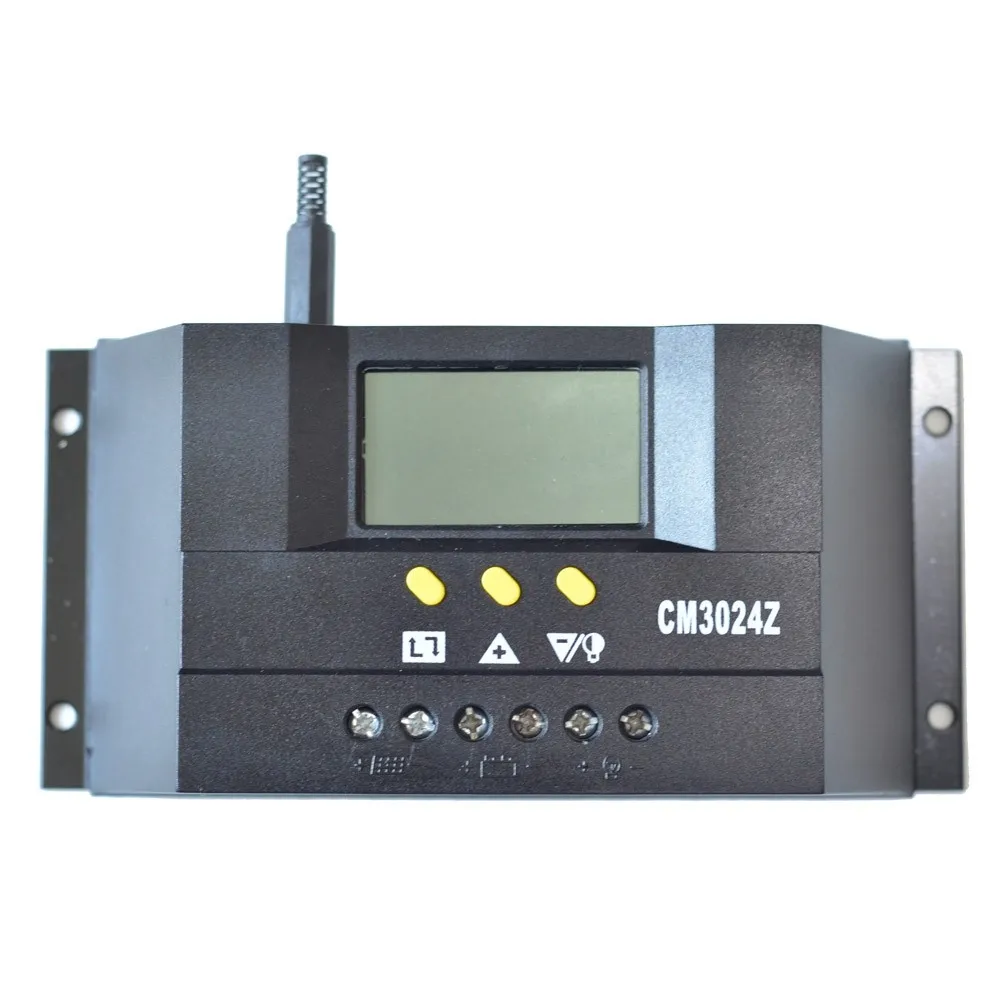

CM3024Z 30A Solar Charge Controller Regulator 12V 24V Auto Switch for PV System
CM3024Z 30A Solar Charge Controller Regulator 12V 24V Auto Switch for PV Systemsolar controller, solar charge controller ,solar regulators,solar controller 30a, solar charge controller 30asolar controller, solar charge controller ,solar regulators,solar controller 30a, solar charge controller 30asolar controller, solar charge controller ,solar regulators,solar controller 30a, solar charge controller 30asolar controller, solar charge controller ,solar regulators,solar controller 30a, solar charge controller 30a

PWM 30A 12V 24V Auto Switch Solar Panel Controller Regulator Charge Battery Protection for PV Solar System CM3024

CODE: CM3024

List price: $20.85

$16.20

You save: $4.65 (22%)
-22%
In stock

Minimum quantity for "PWM 30A 12V 24V Auto Switch Solar Panel Controller Regulator Charge Battery Protection for PV Solar System CM3024" is 1.

Our quantity discounts:

Quantity  10+   30+   50+   100+   200+
Price  $15.95   $14.80   $13.80   $11.56   $11.10

PWM 30A Solar Panel Controller Regulator Charge Battery Protection 12V 24V Auto Switch for PV System


Features

1)Image of LCD graphic symbol
2)Simple button operation
3)Automatic Identification System Voltage level
4)Intelligent PWM charge mode
5)Automatic Temperature Compensation
6)Adjustable charge-discharge control parameters
7)Settable Operating mode of Load
8)Overload, Short Circuit Protection
9)Remote monitoring and control function (custom)
10)Battery reverse-discharge protection
11)Battery Low Voltage Disconnection (LVD)
12)Battery reverse connection protection
13)Accumulated function of charge and discharge Ampere hours



Specifications:

Rated Voltage: 12V / 24V ( Auto Switch )

Rated Current : 30A

Max Input Solar Panel Power: 720W , Connect 24V Battery ( Connect 12V Battery, Max solar Panel Power: 360W )

Open Voltage of Solar Panel : ≤ 50V

Over-charging Protection : 13.8V / ( 27.6V )

Low Voltage Disconnection / LVD: 10.7V / ( 21.4V )

Low Voltage Reconnected / LVR: 12.5 V / ( 25V )

No Load Loss: ≤ 30mA

Loop Voltage Drop: ≤170mV

Charging Mode: PWM mode

Temperature Compensation: -4mV / Cell / °C

Installation Cable area: ≤ 7# AWG (16 mm⊃2; )

Operating Temperature: -10-60 degree Centigrade
Storage Temperature: -30-70 degree Centigrade
Humidity Requirements: ≤ 90% , no condensation
Dimensions: 90 x 188 x 48 mm
Mounting Hole Spacing: 60 x 178 ---φ5 mm



Pictures:











Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 20cm x 15cm x 10cm (7.87in x 5.91in x 3.94in)
