40A MPPT solar charge controller EPever Tracer4215BN Negative Ground
40A MPPT solar charge controller EPever Tracer4215BN Negative GroundEPever MPPT 40A Solar Charge Controller with 150V max pv input voltageEPsolar mppt solar charge controller 40a 12v/24vMPPT 40A 12V 24V Auto suitable for li abttery tracer4215bnEPsolar mppt solar charge controller 10a 12v/24vEPever mppt 40a solar charge controller for solar systemEPever mppt 40a solar charge controller can be monitored by computer and mobile phone

EPEVER MPPT Solar Charge Controller 40A 150VDCSolar Panel Battery Regulator 12V 24V Auto EPsolar Tracer4215BN

CODE: Tracer4215BN

List price: $189.00

$125.00

You save: $64.00 (34%)
-34%
In stock
EPEVER Tracer4215BN MPPT 40A 12V 24V Max PV Input 150V  solar charge controller Temperature Sensor for AN Series RS485 PC Cable for connecting the computer monitor the system MT50 Remote Meter for AN series remote monitor the controller eBox-WIFI for connecting the controller and mobile phone monitor the system eBox-Bluetooth for connecting the controller and mobile phone monitor the system

Minimum quantity for "EPEVER MPPT Solar Charge Controller 40A 150VDCSolar Panel Battery Regulator 12V 24V Auto EPsolar Tracer4215BN" is 1.

Our quantity discounts:

Quantity  3+   5+   20+   50+
Price  $124.00   $123.00   $118.00   $117.00

EPever MPPT Solar Charge Controller 40A Solar Panel Battery Regulator 12V 24V Auto EPsolar Tracer4215BN Mav PV Input 150V





Tracer BN series is EPsolar’s second generation of MPPT controller. Compared with CLASSIC Tracer series, it has extensive communication ability. And the die-cast aluminum design ensures excellent heat dispersion. Compared to conventional PWM controller, MPPT technology increases the charge efficiency up to 30% and potentially decrease the power of solar array needed.



Models:

Tracer1215BN, 10A, 12/24V auto work

Tracer2215BN, 20A, 12/24V auto work

Tracer3215BN, 30A, 12/24V auto work

Tracer4215BN, 40A, 12/24V auto work



Features:

·Advanced MPPT technology, with efficiency no less than 99.5%
·Maximum conversion efficiency of 98%
·Ultra-fast tracking speed and guaranteed tracking efficiency
·Accurately recognizing and tracking of multiple power points
·Reliable automatic limit function of maximum PV input power, ensuring no overload under
  any circumstance
·Wide MPP operating voltage range
·Die-cast aluminum design, ensuring excellent heat dissipation characteristic
·Multiple load control modes: manual control, light ON/OFF, light On+Timer and time control.
·Support 4 charging options: Sealed, Gel, Flooded and User.
·Battery temperature compensation function.
·Real-time energy statistics function.
·With RS-485 communication bus interface and Modbus communication protocol, it is available
  to meet various communication requirements in different situations.
·Available for PC monitoring and external display unit connecting like MT50 and so on, realizing

    real-time data checking and parameters setting.
·Support software upgrade.



Functions:



·PV short circuit  protection
·PV over current protection
·PV reverse polarity protection
·Battery over voltage protection
·Battery over discharge protection
·Battery reverse polarity protection
·Load overload protection
·Load short circuit protection
·Battery overheating protection

·Controller overheating protection







Specification



Model

Tracer1215BN

Tracer2215BN

Tracer3215BN

Tracer4215BN

Nominal system voltage

12/24V auto work

Rated  battery current

10A

20A

30A

40A

Rated  load current

10A

20A

20A

20A

Max. PV open circuit voltage

150V

Max. battery  voltage

32V

Max. PV input power

130W  (12V)

260W  (12V)

390W  (12V)

520W  (12V)

260W  (24V)

520W  (24V)

780W  (24V)

1040W  (24V)

Equalize charging voltage

Sealed: 14.6V,  Flooded: 14.8V, USER: 9~17V

Boost charging voltage

Gel: 14.2V,  Sealed: 14.4V,  Flooded: 14.6V, USER: 9~17V

Float charging voltage

Gel /Sealed /Flooded: 13.8V,   USER: 9~17V

Low voltage reconnect voltage

Gel /Sealed /Flooded: 12.6V,   USER: 9~17V

Low voltage disconnect voltage

Gel /Sealed /Flooded: 11.1V,   USER: 9~17V

Self-consumption

≤50mA(12V)  ≤27mA(24V)

Grounding

Common negative

Temp. compensation

-3mV/℃/2V

Communication Port

RS485 / RJ45 interface

Working temperature

-35℃~+55℃

Storage temperature

-35℃~+80℃

Humidity

≤95% N.C.

Enclosure

IP30

Overall dimension

196x118x36mm

217x143x56mm

281x160x60mm

303x183x64mm

Terminal

4mm2

10mm2

16mm2

25mm2

Net weight

0.9kg

1.5kg

2.3kg

2.9kg

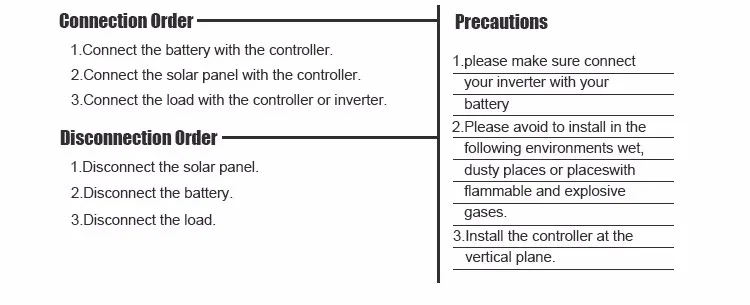

Installation

 MPPT Solar Charge Controller 30A Solar Panel Battery Regulator 12V 24V Auto EPsolar Tracer3215BN Mav PV Input 150VMPPT Solar Charge Controller 30A Solar Panel Battery Regulator 12V 24V Auto EPsolar Tracer3215BN Mav PV Input 150V











Product Display

 MPPT Solar Charge Controller 30A Solar Panel Battery Regulator 12V 24V Auto EPsolar Tracer3215BN Mav PV Input 150VMPPT Solar Charge Controller 30A Solar Panel Battery Regulator 12V 24V Auto EPsolar Tracer3215BN Mav PV Input 150VMPPT Solar Charge Controller 30A Solar Panel Battery Regulator 12V 24V Auto EPsolar Tracer3215BN Mav PV Input 150V
