3000W 4000W 5000W All In One Solar Hybrid Inverter MPPT 60A 80A Pure Sine Wave Inverter 48V 220V 50Hz 60Hz Auto Priority Setting


Brief Instruction

HF series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output.


Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrial standard. Four charging modes are optional, i.e.


Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.



Features


1.Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.

2.Two output modes: mains bypass and inverter output; uninterrupted power supply.

3.Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.

4.Advanced MPPT technology with an efficiency of 99.9%.

5.Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.

6.ON/OFF rocker switch for AC output control.

7.Power saving mode available to reduce no-load loss.

8.Intelligent variable speed fan to efficiently dissipate heat and extend system life.

9.Lithium battery activation design, allowing access of lead-acid battery and lithium battery.

10.360 ° all-round protection with a number of protection functions.

11.Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.





Installation

photo 1



1. PV module: Convert light energy into DC power, and charge the battery through the all-in-one solar charge inverter, or directly invert into AC power to drive the load.


2. Mains or generator: Connected at the AC input, to power the load while charging the battery. If the mains or generator is not connected, the system can also operate normally, and the load is powered by the battery and PV module.


3. Battery: Provided to ensure normal power supply to the system loads when solar energy is insufficient and the Mains is not connected.


4. Household load: Allow connection of various household and office loads, including refrigerators, lamps, TVs, fans and air conditioners.


5. All-in-one solar charge inverter: The energy conversion unit of the whole system.



photo 2


Charging mode

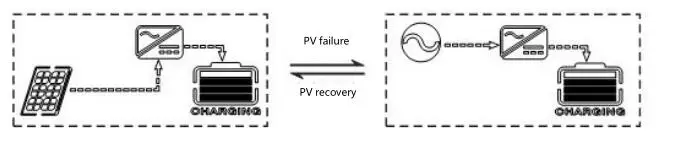

1) PV priority: PV module will charge the battery preferentially, and the battery is charged by the Mains only when the PV system fails. During the day, solar energy is fully used to charge, while at night, it converts to the Mains. This can maintain battery level, and is ideal for areas where the grid is relatively stable and electricity price is relatively high.


01

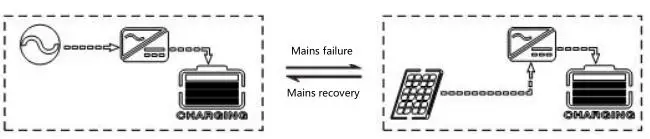

2) Mains priority: The Mains supply is preferentially used to charge the battery. Only when the Mains fails, the PV charging can be activated.

02

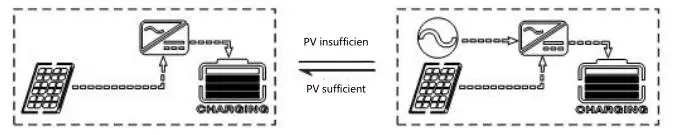

3)Hybrid charging: PV and mains hybrid charging. PV MPPT charging is a priority, and when PV energy is insufficient, the mains supply supplements. When the PV energy is sufficient again, the mains stops charging. This is the fastest charging mode, suitable for the areas where power grid is unstable, providing sufficient backup power supply at any time.


03


4)Only Solar (Only Solar): Only PV charging, without Mains charging. This is the most energy-efficient way in which battery is charged only by solar panels, and is usually used in areas with good lighting conditions.

004




Technical parameters



Models HF4830S60 HF4840S60 HF4850S80 HF4825U60 HF4830U60 HF4835U80
Mains mode
Rated input voltage 220/230Vac 110/120Vac
Input voltage range (170Vac~280Vac) ±2%
(90Vac-280Vac) ±2%
(90Vac~140Vac) ±2%
Frequency 50Hz/ 60Hz (Auto detection)
Overload/short circuit protection Circuit breaker
Efficiency >95%
Conversion time (bypass and inverter) 10ms (typical)
AC reverse protection Available
Maximum bypass overload
current
40A
Inverter mode
Output voltage waveform Pure sine wave
Rated output power (W) 3000 4000 5000 2500 3000 3500
Power factor 1
Rated output voltage (Vac) 230Vac 120Vac
Output frequency 50hz/60hz
Peak power 6000VA 8000VA 10000VA 5000VA 6000VA 7000VA
Loaded motor capability 2HP 3HP 4HP 1HP 1HP 2HP
Output short circuit protection Circuit breaker
Bypass breaker specifications 40A
Rated battery input voltage 48V (Minimum starting voltage 44V)
Mains charging
Battery type Lead acid or lithium battery
Maximum charge current 60A 30A
Charge voltage range 40 –58Vdc 40 –60Vdc
Short circuit protection Circuit breaker and blown fuse
Circuit breaker specifications 40A
Overcharge protection Alarm and turn off charging after 1 minute
PV charging
Maximum PV open circuit voltage 145Vdc
PV operating voltage range 60-145Vdc
MPPT voltage range 60-115Vdc
Battery voltage range 40-60Vdc
Maximum output power 3200W 4200W 3200W 4200W
PV charging current range
(can be set)
0-60A 0-80A 0-60A 0-80A
Charging short circuit protection Blown fuse
Wiring protection Reverse polarity protection
Certified specifications
Certification CE(EN62040-1)
EMC certification level EN62040-2, C2
Operating temperature range -15°C to 55°C
Storage temperature range -25°C ~ 60°C
Humidity range 5% to 95% (Conformal coating protection)
Noise ≤60dB
Heat dissipation Forced air cooling, variable speed of fan
Communication interface USB/RS485(Bluetooth/WiFi/GPRS)/Dry node control
Size (L*W*D) 430mm*338mm*126mm
Weight (kg) 10
